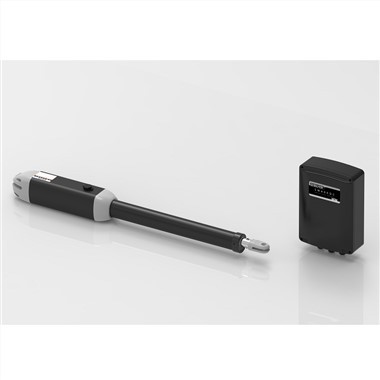

Dual Swing Gates Operator
This dual swing gates operator SW200DC is applicable to single leaf gate weight less than 200kg, and the length shorter than 2m. The drive mode adopts planetary transmission to combine with the screw rod transmission.
Dual Swing Gates Operator Introduction
This dual swing gates operator SW200DC is applicable to single leaf gate weight less than 200kg, and the length shorter than 2m. The drive mode adopts planetary transmission to combine with the screw rod transmission.
This gate opener must be installed inside the enclosure or yard for protection.
Technical Parameters
Model | SW200DC |
Power Supply | 110V AC/60Hz; 220V AC/50Hz |
Running Speed | 18~22s / 90° |
Maximum Loading Weight | 200KG/Leaf |
Maximum Swing Length | 2m |
Maximum Piston Stroke | 30 cm |
Maximum Force | 2200N |
Noise | ≤58dB |
Working Duty | S2, 30min |
Working Temperature | -20°C ~ +70°C |
Remote Distance | ≥30m |
Remote Mode | Single / Four Button |
Remote Frequency | 433.92 MHz |
Feature
1. DC motor, built-in a transformer, can be connected to 24V solar system or 110V/220V power supply.
2. Can be opened by manual release bar when the power is off.
3. External security device and access control system can be connected.
4. Customized products available.
