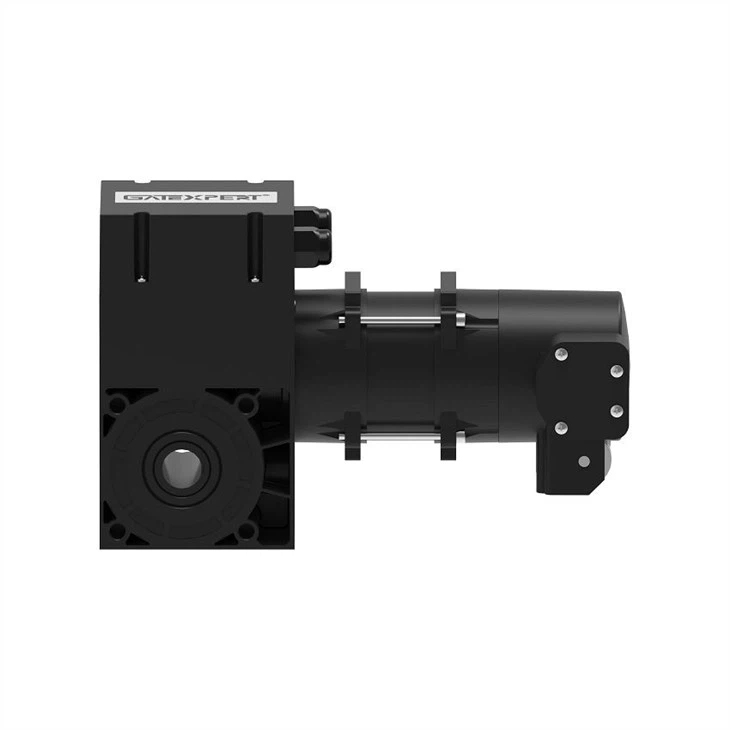

450W Industrial Door Machine
This motor power 450W industrial door machine is mainly used in the industrial sectional door equipped with balance spring, but also can applied in lifting industrial door.
Introduction
This motor power 450W industrial door machine is mainly used in the industrial sectional door equipped with balance spring, but also can applied in lifting industrial door. The installation of door machine has two forms, shaft drive and chain drive.
Technical Parameters:
INDUS70DC For sectional doors up to 30m2
Model | INDUS70DC |
Power Supply | AC220V±10% |
Motor Power | 450W |
Max.Output Torque | 70N.m |
Output Speed Range | 10~50RPM |
Max.Loading（Door Area） | 30m2 |
Main engine Dimension（mm） | 337x135x218 |
Main engine Weight（kg） | 12 |
Reducer Lubricating System | Liquid Oil Lubrication |
Encoder Type | Single Circle Absolute Encoder |
Manual/Auto switch | Pull Cord Switch |
Manual Release | Hand-Pulled Chain |
Maximum Limit Travel | Output shaft rotates 19 rounds |
Wording Temperature | -20℃ ～+50℃ |
Kit Contents
1 220VAC Motor.
1 Control Unit with Built-in Control Board.
1 10m Hand Chain
2 Remote Transmitters
1 Encoder (network) cable (5m)
1 Motor (four-core) wire (5m)
1 Motor encoder (five-core) wire (5m)
1 Safety switch (two core) wire (5m)
1 User Manual
Mounting Accessories
Kraft Package
