Heavy-Duty Swing Gate Operator Kit 500KG PK500DC
Heavy-Duty Swing Gate Operator Kit 500KG PK500DC
video
Heavy-Duty Swing Gate Operator Kit 500KG PK500DC
Heavy-Duty Swing Gate Operator Kit 500KG PK500DC suppliers
Heavy-Duty Swing Gate Operator Kit 500KG PK500DC factory
Heavy-Duty Swing Gate Operator Kit 500KG PK500DC best
Heavy-Duty Swing Gate Operator Kit 500KG PK500DC high quality
Heavy-Duty Swing Gate Operator Kit 500KG PK500DC price
1/2
<< /span>
>

Heavy-Duty Swing Gate Operator Kit 500KG PK500DC

PK500DC is for swing door. It is applicable to single leaf gate weight less than 500kg, and the length shorter than 5m. The drive mode adopts planetary transmission to combine with the screw rod transmission. The operation time of this opener is 20-25 seconds, and the maximum opening angle can reach 90 degrees. This gate operator kit must be installed inside the enclosure or yard for protection.

Send Inquiry
Add To Inquiry

Products Description

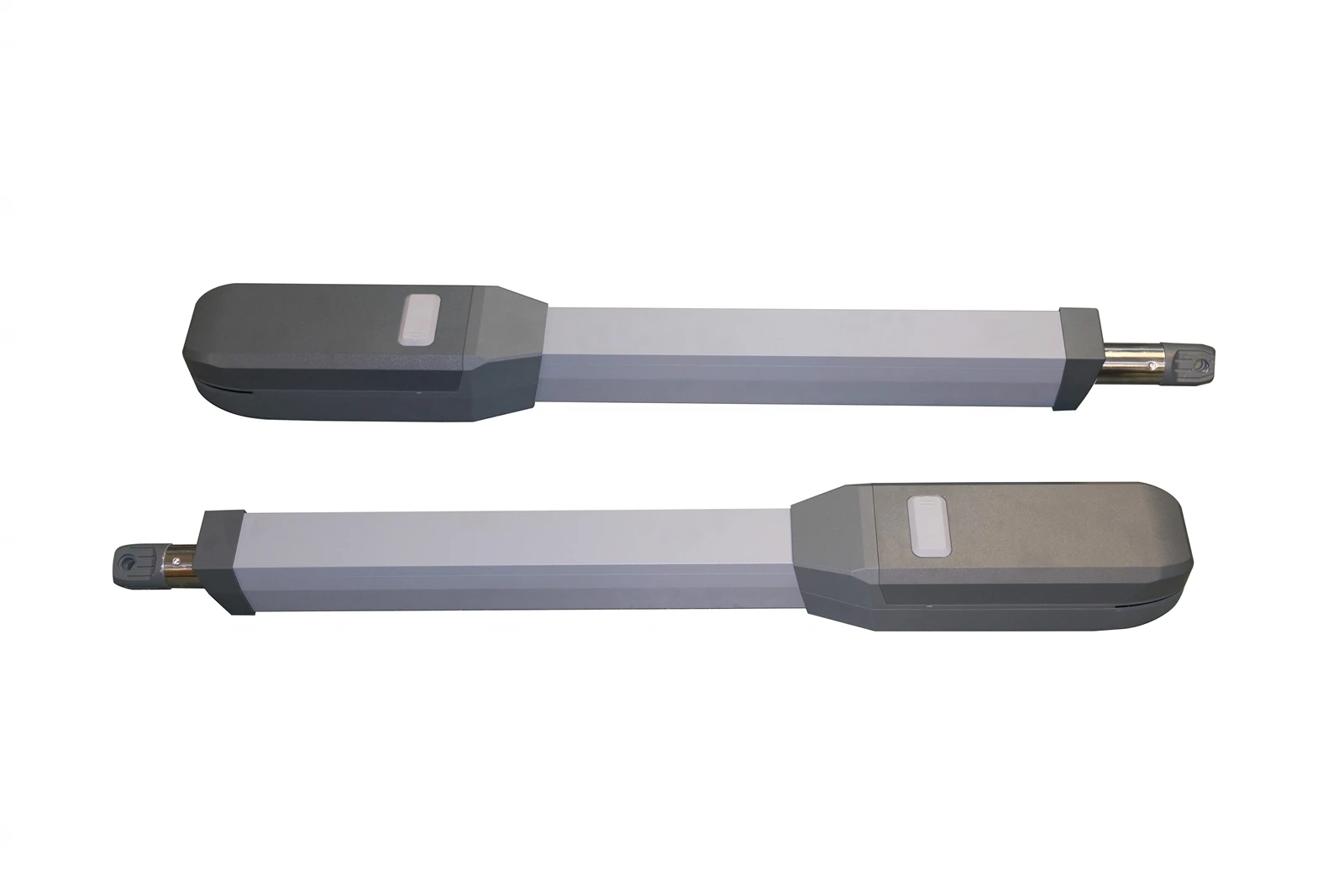

product-6240-4160

PK500DC is for swing door. It is applicable to single leaf gate weight less than 500kg, and the length shorter than 5m. The drive mode adopts planetary transmission to combine with the screw rod transmission. The operation time of this opener is 20-25 seconds, and the maximum opening angle can reach 90 degrees.

This gate operator kit must be installed inside the enclosure or yard for protection.

Parameters



Model PK500DC
Power Supply 110VAC/60Hz; 220VAC/50Hz
Motor Power 110W*2
Gate Moving Speed 20-25/90°
Maximum Loading Weight 110kg-500kg(Max. 500kg at 2m width)
Remote Control Distance ≥30m
Limit Switch Microswitch in opening and cc losing/Electromechanical
Remote Control Mode Single/Three
Recording of up Remote Controls 32
Remote Frequency 433.92MHz
Max. piston Stroke 445mm
Working Temperature -20ºC-+70ºC



Functions

1. Automatic close with waiting time adjustable.
2. Obstacle sensibility, slow speed distance and gate moving speed setting.

3. Single and dual gate mode can be set.

4. WiFi function optional.



Features

1. Miroswitch in opening and closing/Electromechanical.

2. DC motor, built-in a transformer, can be connected to 24V solar system or 110V/220V power supply.

3. Can be opened by manual release key when the power is off.

4. External security device and access control system can be connected.

5 Tuya Wi-Fi module(optional).



After-sales service



1.One year warranty, provide you the replacement parts for free.
2. Multiple channels to contact us, we have our own website.

3. Professional technical capabilities to meet your customization requirements.
4. Timely response within 24 hours.
