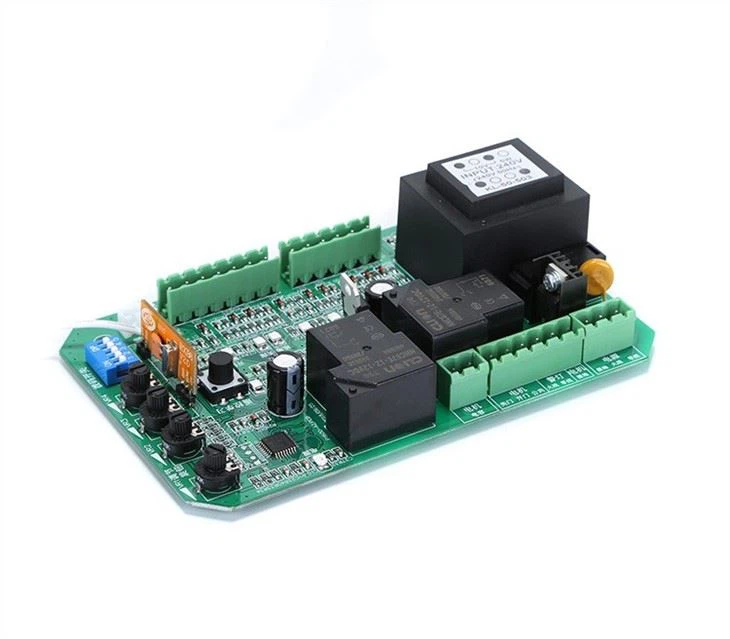

PY600-A Board Controller
1.110V/220 AC 2.PCB BOARD MATERIAL -- FR-4. COMPATIBILITY--The control board is only compatible with our remote control. You can ask us before you make an order. 3.AUTOMATIC CLOSE TIME SETTING--12s, 24s, 36s. 4.REMOTE CONTROL--For this control board，you can add 25 remote controls.(if you need the remote control,you can choose it from our store.) Long-range control, compatible with HOMELINK system, fast and convenient. 5.EASY TO INSTALL AND SETUP--You can install and setup by yourself according to the instructions easily.
Wiring instruction:
1. Connect L and N to the power supply of AC220V/50HZ; AC110V/60HZ; L is Live wire, N is Neutral wire, and PE is grounding wire.
2. Connect LAMP to D1, D2; voltage: AC220V/50HZ; AC110V/60HZ.
3. Connect the motor wire U to the REV motor wire, connect W to the FWD motor wire, and connect V to the motor common wire.
4. Connect C, C to the capacitor wire.
X5 Terminal
24VDC Power supply for fittings +24VDC（Electric current ≤50mA）;
GND Power ground;
I.R Photocell input (N.C.);
CLLM Close limit switch;
COM Limit switch common terminal;
OPLM Open limit switch.
X7 Terminal
COM Control button common terminal;
STP Stop control button (N.O.);
CLS Gate close control button (N.O.);
OPN Gate open control button (N.O.).
