Electric Operation Of Sliding Gate

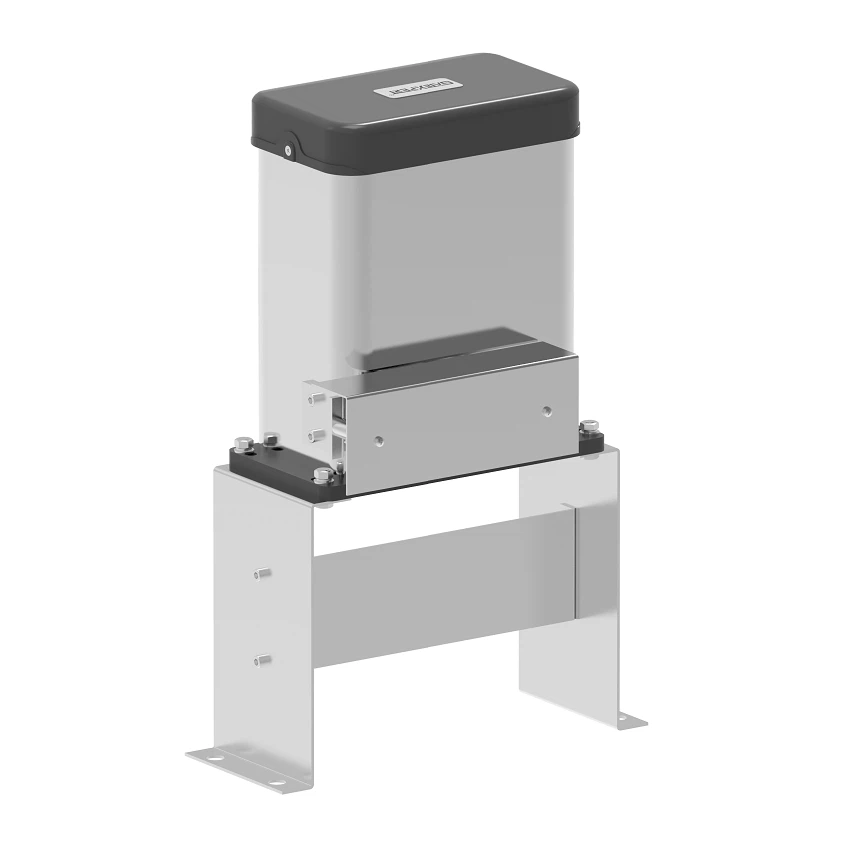

PY300DCL Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 300kg in weight, up to a length of 12m. (Standard kit contains a 6m chain, if the gate length is over 5.5m, please consider to extend the length of the chain.).
Electric Operation of Sliding Gate Introduction
PY300DCL Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 300kg in weight, up to a length of 12m. (Standard kit contains a 6m chain, if the gate length is over 5.5m, please consider to extend the length of the chain.).
Gate motion is achieved by the rotating output sprocket of the gate opener driving the chain fitted to the moving gate.
The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation.
The opener must be fitted within private property, never externally to a property's boundary.
Parameters
Model | PY300DCL |
Power Supply | 110VAC/60Hz; 220VAC/50Hz |
Running Speed | 13m/min |
Limit Switch | Electronic |
Noise | ≤60dB |
Remote Distance | ≥30m |
Remote Frequency | 433.92MHz |
Environment Temperature | -20℃～+70℃ |
Remote Mode | Single Button |
Package Weight | 11.32Kg |
Feature
1. DC motor, built in a transformer and a battery, can be connected to 24V solar system or 110V/220V power supply.
2. External security device and access control system can be connected.
3. Electronic limit switch, easy to set open/close limit position.
4. Customized products available.
