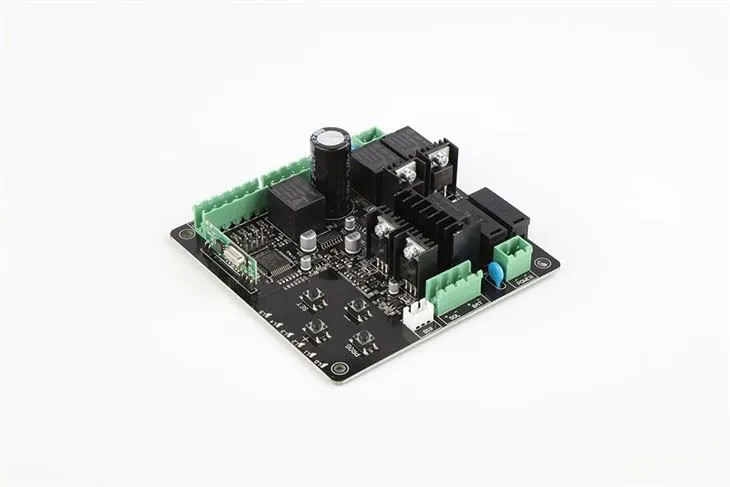

SL500DC Board Controller
The control board is only compatible with our gate openers and only match our remote control.
Automatic Close Function: Auto-Close time can be set to 10, 20, 30,40or50 seconds with no automatic close function.
Intelligent Capabilities: Soft start and slow stop function, auto reversal function when meeting obstacle.
| Model | SL500DC | SL800DC |
| power supply | 220v/50Hz;110v/60Hz | 220v/50Hz;110v/60Hz |
| Gate moving speed | 16-18m/min | 16-18m/min |
| Motor power | 150W | 180W |
| Maximum weight of gate | 500KG | 800KG |
| Remote control distace | ≥30m | ≥30m |
| Remot control mode | Single/Three button mode | Single/Three button mode |
| Limit switch | Electronic limit switch | Electronic limit switch |
| Frequency | 433.92 MHz | 433.92 MHz |
| Working temperature | -20°C ~ +70°C | -20°C ~ +70°C |
Maintain
1.Check the door once a month to check whether the door is operating normally.

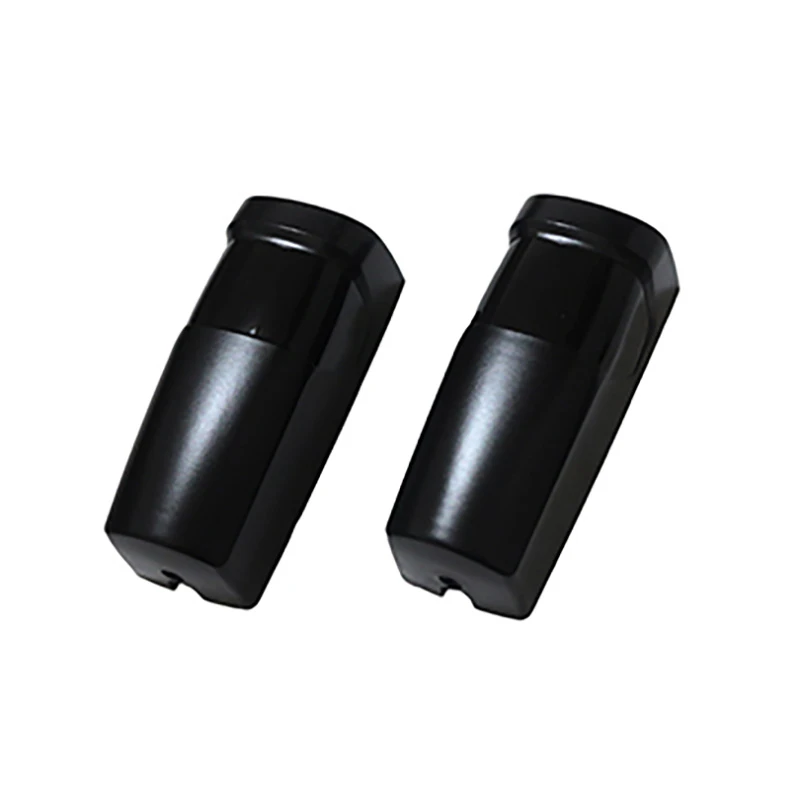

2.For safety, each door must be installed with infrared protection devices and checked regularly.
3.Please read all manuals carefully before installing and operating the door opener.
4.The company reserves the right to make changes without notice.
