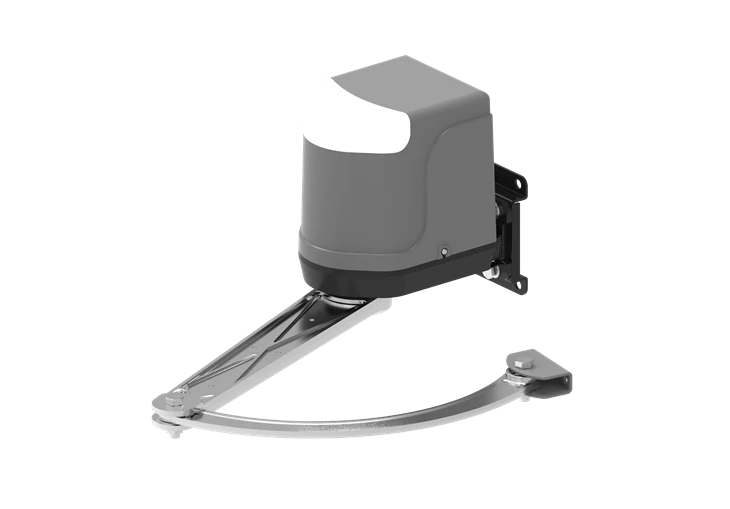

250kg Articulated Automatic Swing Gate Opener

SW250DC is for swing door. It is applicable to single leaf gate weight less than 250kg, and the length shorter than 2.5m. The drive mode adopts planetary transmission to combine with the screw rod transmission. This gate operator kit must be installed inside the enclosure or yard for protection.

Send Inquiry

Add To Inquiry

Products Description

This gate operator kit must be installed inside the enclosure or yard for protection.

Packing List

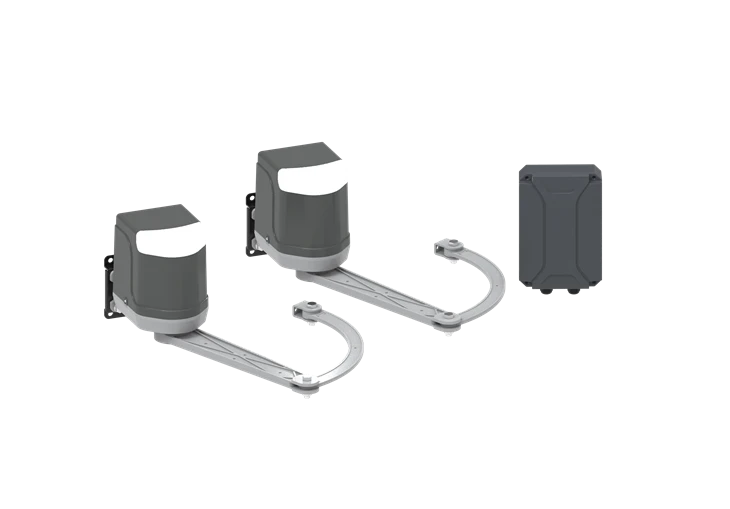

*Articulated arm motor unit(s) – single or dual leaf configuration
*Control box with built-in control panel and transformer
*2pcs rolling code remote controls (433.92MHz)
*Mounting brackets and installation hardware
*User manual

Parameters

Model	SW250DC
Power Supply	110VAC/60Hz; 220VAC/50Hz
Motor Power	40W*2
Output Rotational Speed	2.7r/min
Maximum Loading Weight	250kg
Max. Single-leaf Gate Width	2.5m
Remote Control Distance	≥30m
Limit Switch	Microswitch in opening and cc losing/Encoder
Remote Control Mode	Single/Three
Recording of up Remote Controls	32
Remote Frequency	433.92MHz
Working Temperature	-20ºC-+70ºC
Functions 1. Automatic close with waiting time adjustable. 2. Obstacle sensibility, slow speed distance and gate moving speed setting. 3. Single and dual gate mode can be set. Features 1. Miroswitch in opening and closing/Electromechanical. 2. DC motor, built-in a transformer, can be connected to 24V solar system or 110V/220V power supply. 3. Can be opened by manual release key when the power is off. 4. External security device and access control system can be connected. 5 Tuya Wi-Fi module(optional). After-sales service Standard Warranty: 12 months. Customer Support: Online technical assistance and spare parts supply..
