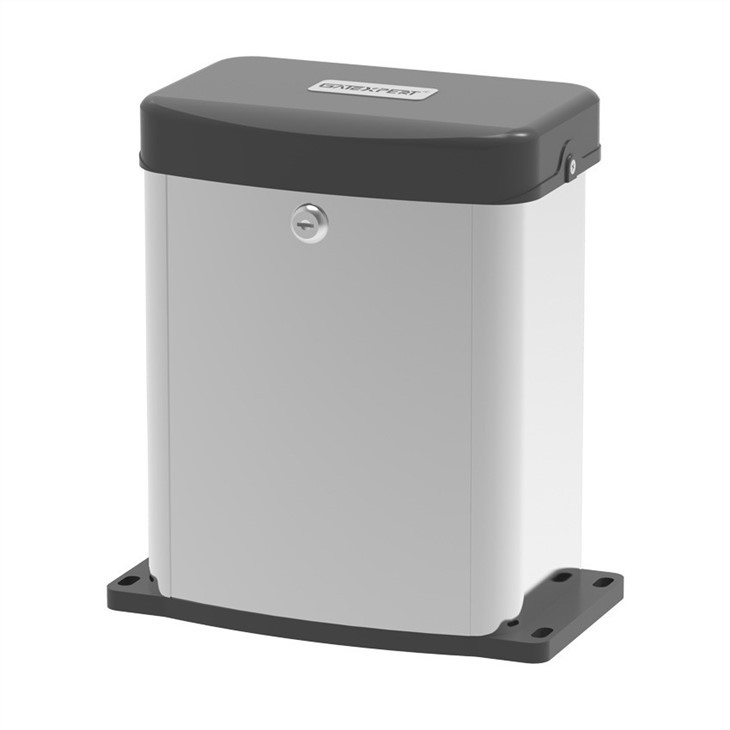

Solar Sliding Gate Opener Rack Drive
Electric Limit Switch. Gear driveway, a 17 teeth gear is installed behind the gate opener and the gear drive the gate running. Built in a 100W motor, a control board and two 12V4.5Ah batteries, the gate should be within 12m and 300kg.
Solar Sliding Gate Opener Rack Drive (PY300DC) Instruction
Electric Limit Switch. Gear driveway, a 17 teeth gear is installed behind the gate opener and the gear drive the gate running.
Built in a 100W motor, a control board and two 12V4.5Ah batteries, the gate should be within 12m and 300kg.
Packing List(standard)
Name | Quantity |
Motor | 1 |
Manual Release Keys | 2 |
Remote Controls | 2 |
Accessories Box | 1 |
Manual Release Bar | 1 |
Anchor Bolts M8 | 4 |
Nuts M8 | 8 |
Flat Washers φ8 | 8 |
Spring Washers φ8 | 8 |
Packing List(optional)
Name | Quantity |
Galvanized Gear Rack | 1m/pc |
Nylon Gear Rack | 1m/pc |
Infrared Photocell | 1 |
Wireless Keypad | 1 |
Alarm Lamp | 1 |
Mounting Plate | 1 |
Hexagon Head Bolt M8X40 | 4 |
Note
1. The two remote controls in the solar sliding gate opener rack drive kit package have been programmed in the factory, you needn’t program again, if you have deleted the remotes accidentally, just learning the remotes again.
2. The 110V/220V power supply connecting position is different from the 24V solar system. If you need to use the solar system, you need to connect the solar charger to the control board, please don’t connect the solar panel or batteries to the control board directly.
Advantage
1. Electric limit switch: There is a display on the control board, easy to set the opened and closed position, adjust the auto-close time, set the reverse function after meeting obstacles, set the infrared sensor and operate the remote control.
2. Both of the home power supply and solar system can be used.
3. 24V low power is for saving energy and more safe.
4. Don’t worry if the power is off, it still can work for a while.
