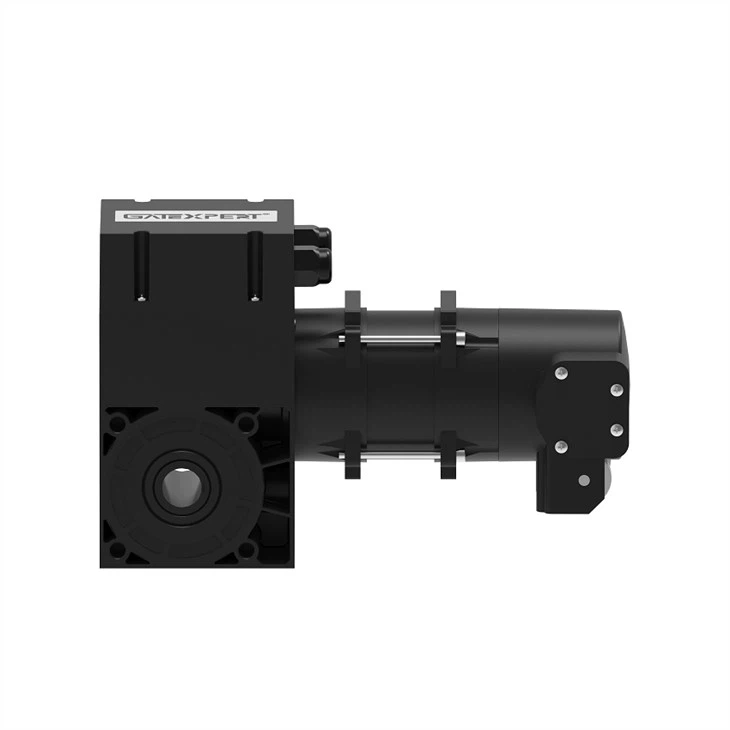

Mechanical Limit Switch Sectional Door Opener

This mechanical limit switch sectional door opener is mainly used in the industrial sectional door equipped with balance spring, but also can applied in lifting industrial door.

Send Inquiry

Add To Inquiry

Mechanical Limit Switch Sectional Door Opener Introduction

This mechanical limit switch sectional door opener is mainly used in the industrial sectional door equipped with balance spring, but also can applied in lifting industrial door. The installation of door machine has two forms, shaft drive and chain drive.

Door should be flexible and run without stagnation; lead rail end of door must be installed with mechanical stop block and buffering booster to prevent the door from rolling out.

single phase sectional door machines

Technical Parameters

Model (Single Phase AC220V±10%)	GK60
Motor Power	400W
Power Supply	AC220V single phase or AC380V three phase
Torque	60N.m
No-load Continuous Running Time	15min
Thermal Protection Temperature	120℃
No-load Rotation Speed	24r/min
Lubricating System	Oil-immersed
Noise	≤55dB
Quick Release	Optional
Maximum Limit Travel	Output shaft rotates 20 rounds
Output Shaft Diameter	Φ25.4mm
Environment Temperature	-20℃～+45℃
Working Duty	S2-15min

Determine the Installation Position

Consider the boundary dimension and installation direction of the door machine, determine the position of the mounting bracket, mark the insert cavity position, drill the screw hole and fix the mounting bracket.

Our Advantage

1. Easy to installation

2. Strict quality management system

3. Superior equipment

4. Professional services

5. OEM/ODM services

8. High quality products

9. Diversity of automatic gate opener and gate/door accessories

10. Competitive price

11. Prompt delivery

How can I place an order?

You can contact any of our salesmen for machine and order details. Please tell us your requirements as clearly as possible when making an inquiry, so that we can send you a quotation as soon as possible.
