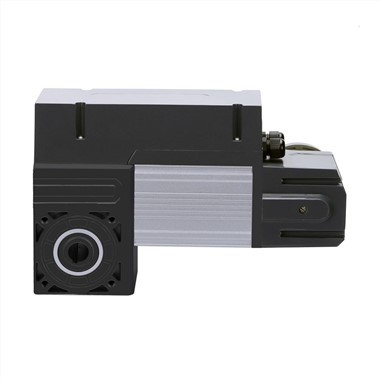

Industrial Aluminum Rolling Up Door Opener

The motor power of this model of industrial aluminum rolling up door opener is 300W, it is suitable for 20 square meters area sectional door.,which is with IP54 protection level to prevent it from water and dust.

Send Inquiry

Add To Inquiry

Industrial Aluminum Rolling up Door Opener Instruction

(Model INDUS40E)

Compare to the model of INDUS40, this kind of industrial aluminum rolling up door opener is with electric limit switch, easier to set and use, we updated the appearance of the control box and the door opener, to help you distinguish between two models.

High Speed Door Opener

Technical Parameters of Industrial Aluminum Rolling up Door Opener

Model (Single Phase AC220V±10%)	INDUS40E
Rated Power	300W
Torque	40N.m
No-load Continuous Running Time	15 min.
Max. gate area	20m²
Thermal Protection Temperature	120℃
Reduction Ratio	1:58
No-load Rotation Speed	24r/min
Lubricating System	Oil-immersed
Noise	≤55dB
Hand Release Device	360°Hand-pulled chain
Maximum Travel Limit	Output shaft rotates 20 rounds
Output Shaft Diameter	Φ25.4mm
Environment Temperature	-20℃ ～+50℃
Working Duty	S2-15min
Protection Class	IP54
Operator Dimension(mm)	232x151x368
Operator Weight(kg)	14

Technical Parameters of Control Unit

Model	GKB220E
Power Supply	AC220V/50Hz
Remote Control	Available
Applicable Model	INDUS40E/60E/100E
External Three Button Switch Terminal	Available (Optional)
External Single Button Switch Terminal	Available (Optional)
Partial Opening Button Switch Terminal	Available (Optional)
Interlock Terminal	Available (Optional)
Infrared Photocell Terminal	Available (Optional)
Airbag Terminal	Available (Optional)
Loop Detector Terminal	Available (Optional)
Small-door Terminal	Available (Optional)
Multi-function Output Terminal	Available (Optional)
DC24V Power Terminal	Available (Optional)
Protection Class	IP54
