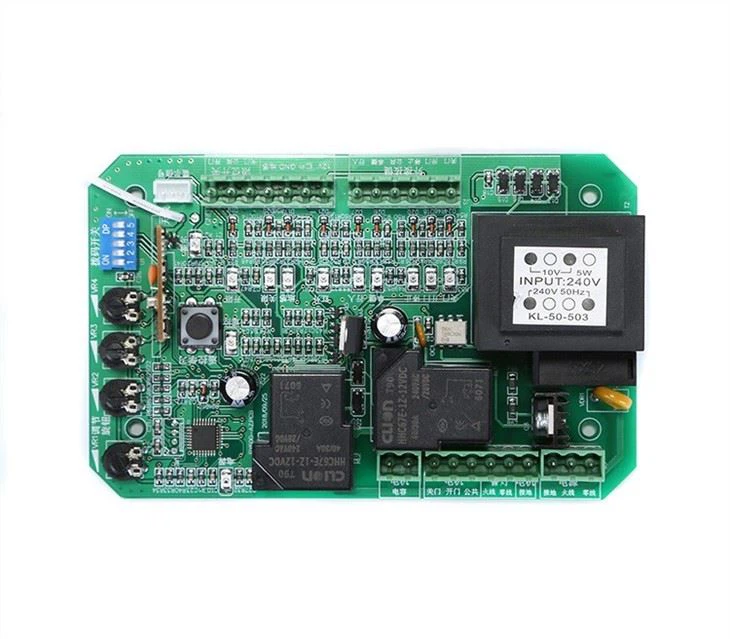

AC Board Controller
1.110V/220V AC 2.PCB BOARD MATERIAL -- FR-4. COMPATIBILITY--The control board is only compatible with our remote control. You can ask us before you make an order. 3.AUTOMATIC CLOSE TIME SETTING--12s, 24s, 36s. 4.REMOTE CONTROL--For this control board，you can add 40 remote controls.(if you need the remote control,you can choose it from our store.) 5.EASY TO INSTALL AND SETUP--You can install and setup by yourself according to the instructions easily.
Please make sure that the power voltage being used matches with the supply voltage of gate opener (AC110V or AC220V); kids are not allowed to touch the control devices or the remote-control unit.
The remote-control unit is single button mode or three button mode (please refer to the instructions of the remote control in accordance with the actual gate opener type). The indicator light on the remote-control unit will flicker when its button is pressed. Main engine and gate can be unlocked with a disengagement wrench and the gate can be manually operated after disengagement.
Please make sure that nobody is around the main engine or gate when the switch is operated. Please temporarily stop using the product if the main engine needs to be repaired or regulated. The installation and maintenance of the product must be carried out by professionals.
Please read this manual carefully before installing、using、maintaining or repairing it. Without following this manual, any injury or property losses caused by improper use or unauthorized modification is out of the responsibility of our company.
Model | SL1000AC | SL1500AC |
Power supply | 220V/50Hz;110V/60Hz | 220V/50Hz;110V/60Hz |
Motor power | 400W | 550W |
Gate moving speed | 11-13m/min | 11-13m/min |
Maximum weight of gate | 1000Kg | 1500Kg |
Remote control distance | ≥30m | ≥30m |
Remote control mode | Single button mode / Three button mode | Single button mode / Three button mode |
Limit switch | Spring limit switch / Magnetic limit switch | Spring limit switch / Magnetic limit switch |
Noise | ≤60dB | ≤60dB |
Working duty | S2, 20min | S2, 20min |
Recording of up remote controls | 25 | 25 |
Frequency | 433.92 MHz | 433.92 MHz |
Working temperature | -20°C ~ +70°C | -20°C ~ +70°C |
Package weight | 15Kg | 16Kg |
SL1000AC/SL1500AC sliding gate opener is applicable to gate weight less than 1000kg/1500kg, and length of the sliding gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
X5 Terminal
24VDC Power supply for fittings +24VDC（Electric current ≤50mA）;
GND Power ground;
I.R Photocell input (N.C.);
CLLM Close limit switch;
COM Limit switch common terminal;
OPLM Open limit switch.
