Safety Warning Lights
Yellow color design to attention people,easy to wire and install,it is a good choice for your sliding gate operator kits, and any other accessories welcome you check in our store,we are glad to provide more products for you.
LPH110 Safety Warning Lights Instruction
Yellow color design to attention people,easy to wire and install,it is a good choice for your sliding gate operator kits, and any other accessories welcome you check in our store,we are glad to provide more products for you.
Technical Parameters:
Working voltage | 110VAC |
Flicker frequency | 1Hz±0.2Hz |
Loading capacity | 15W |
Working temperature | -20℃~+60℃ |
Size | Φ90*125mm |
Class | IP54 |
Weight | 162g |
Feature:

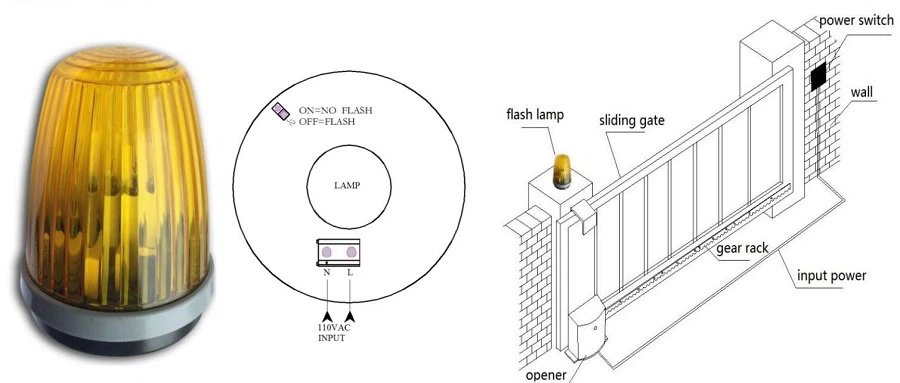

1. Connected to automatic gate control system, when the gate is moving, the warning light will be flashing to warning people for security.
2. There is a light bulb in the safety warning lights, not led, if you need led lamp please contact the customer service for a link of other products.
3. Compatible with all 110V gate/door automation system.
4. The package is with installation screws, you needn’t prepare by yourself.
Safety Instruction:
1. For security,please read the user manual carefully before initial operation.
2. Please be sure the power is off before connecting, the product is produced without fuse.
3. This system must not endanger life or property during the running failure or its security risks have been eliminated.
Installation Instruction:
1. Connect the AC 110 power supply with Terminal CN1, then the lamp will flicker, the flash working flicker frequency is 1HZ.
2．J2: It controls lamp in flickering or lighting. J2 at off , lamp flickers in 1HZ when power on; J2 at on, lamp keeps lighting when power on.
Attention: it is forbidden to keep the lamp lighting for a long time when J2 at on.
