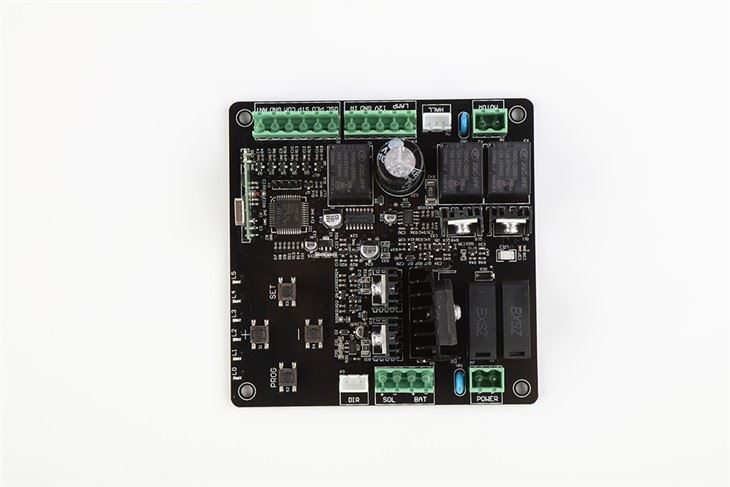

SL500DC V2.0 Board
The control board is only compatible with our gate openers and only match our remote control.
Automatic Close Function: Auto-Close time can be set to 10, 20, 30,40or50 seconds with no automatic close function.
Intelligent Capabilities: Soft start and slow stop function, auto reversal function when meeting obstacle.
| Model | SL500DC | SL800DC |
| power supply | 220v/50Hz;110v/60Hz | 220v/50Hz;110v/60Hz |
| Gate moving speed | 16-18m/min | 16-18m/min |
| Motor power | 150W | 180W |
| Maximum weight of gate | 500KG | 800KG |
| Remote control distace | ≥30m | ≥30m |
| Remot control mode | Single/Three button mode | Single/Three button mode |
| Limit switch | Electronic limit switch | Electronic limit switch |
| Frequency | 433.92 MHz | 433.92 MHz |
| Working temperature | -20°C ~ +70°C | -20°C ~ +70°C |
Travel Setting Tips:

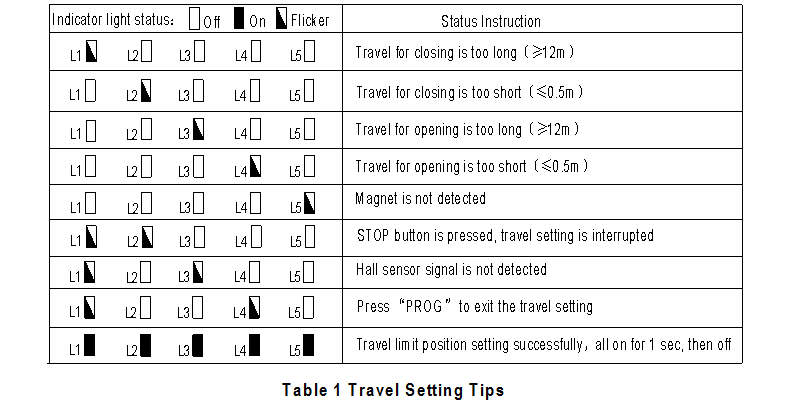

During the travel setting process, users can check the travel limit position settings though the indicator lights status. (Table 1 Travel Setting Tips)
Note:
1. If there is no operation under the limit switch position setting status, system will automatically exit after 20 sec.
2. If need to exit in the process of travel limit position setting, please press “PROG” once to directly exit.
Remote Control Management
Operation Instruction:
1. Press “+” button for 3 sec. to enter into the first function of remote control management under the control board standby mode.
2. Different functions can be selected through “+” and “-” buttons.
3. Press “SET” button to enter into the corresponding selection to set the parameters.
