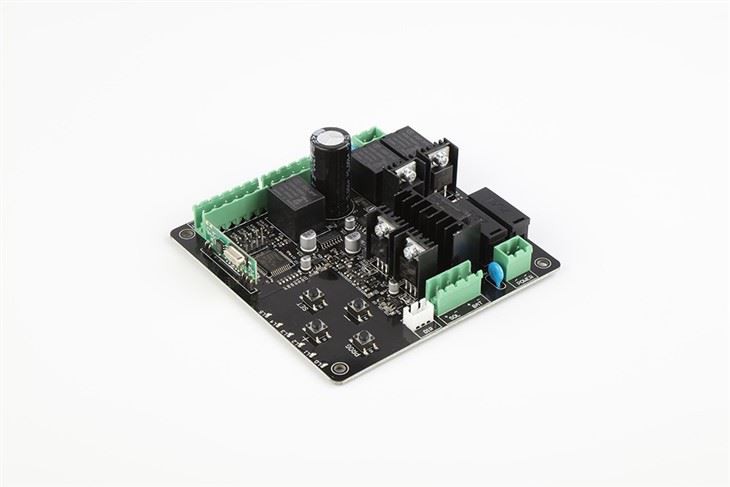

Electronic limit control board
The control board is only compatible with our gate openers and only match our remote control.
Automatic Close Function: Auto-Close time can be set to 10, 20, 30,40or50 seconds with no automatic close function.
Intelligent Capabilities: Soft start and slow stop function, auto reversal function when meeting obstacle.
| Model | SL500DC | SL800DC |
| power supply | 220v/50Hz;110v/60Hz | 220v/50Hz;110v/60Hz |
| Gate moving speed | 16-18m/min | 16-18m/min |
| Motor power | 150W | 180W |
| Maximum weight of gate | 500KG | 800KG |
| Remote control distace | ≥30m | ≥30m |
| Remot control mode | Single/Three button mode | Single/Three button mode |
| Limit switch | Electronic limit switch | Electronic limit switch |
| Frequency | 433.92 MHz | 433.92 MHz |
| Working temperature | -20°C ~ +70°C | -20°C ~ +70°C |
5.4.1 Single Button Mode Learning (L1)
Under this mode, one of the remote control buttons that is paired to gate opener can individually control the operation of one opener. The rest buttons on this remote control can be used to pair to other openers. (Please refer to instruction 5.4.3 for the usage for the forth button on the remote control)
A. Operation Instruction
1. Press “+” button for 3 sec. to enter into remote control management mode. à Indicator light L1 will be always on.
2. Press “SET” button once to enter into single button learning mode. à Indicator lights L1 and L5 will flicker alternately. (If an alarm lamp is connected, it’ll flash at the same time)
3. Press the button which is to be learned on the remote control. à Indicator lights L1-L5 will be on for 1 sec. (If an alarm lamp is connected, it’ll be on for one sec.) Learning is complete thereafter.
4. The control board will stay in learning mode after remote control learning successfully, the learning of the remain remote controls can be done by repeating the 3rd step; Press “PROG” button to exit the learning mode.
5.4.2 Three-Button Mode Learning (L2)
Under this mode, all buttons on the remote control that are paired to gate opener will be separately used for gate opening、closing and stop. (Please refer to instruction 5.4.3 for the usage for the forth button on the remote control)
A. Operation Instruction
1. Press and hold “+” button for 3 sec. to enter into remote control management mode. à Indicator light L1 will be always on.
2. Press “+” button once to select three button learning mode option. à Indicator light L2 will be always on.
3. Press “SET” button once to enter into three button learning mode. à Indicator lights L3 and L5 will flicker alternately. (If an alarm lamp is connected, it’ll flash at the same time)
4. Press the button which is to be learned on the remote control. à Indicator lights L1-L5 will be on for one sec. (If an alarm lamp is connected, it’ll be on for one sec.) Learning is complete thereafter.
5. The control board will stay in learning mode after remote control learning successfully, the learning of the remain remote controls can be done by repeating the 4th step; Press “PROG” button to exit the learning mode.
Note:
If there is no operation during the remote control learning process, system will automatically save all the paired remote controls and exit after 20 seconds.
Maintain
1.Check the door once a month to check whether the door is operating normally.
2.For safety, each door must be installed with infrared protection devices and checked regularly.
3.Please read all manuals carefully before installing and operating the door opener.
4.The company reserves the right to make changes without notice.
