RT48 Gate Keypad Instruction

Safety Instruction

1. It is only allowed to be installed by professional.

2. Ensure that the numerical value needed is the same as the specification before installing.

3. It is only used for automatic gate and other similar mechanical devices.

Product Instruction

1. It is a 2-channel Transmitter (433.92MHz) and only can be activated by pressing correct password.

2. The gate keypad can be installed both inside and outside room.

3. The product can ensure the maximum safety because of the changing code for each time.

4. Working range can reach 100 meters in the open area outdoor. Indoor range is 35m.

5. Use CR2450 battery; working voltage is 3V; loading capacity is 580mAH.Weight 239g.

6. The design extends the battery life. It can work for 2 years with 10 operations per day.

How to learn gate keypad channel 1 to a receiver ?

Press the learning button on receiver and the LED light turns red, and press the button A on keypad twice after enter the password for keypad channel 1. LED light on receiver will be flashing and turns Green. Learning process is finished. It is the same for channel 2.

Installation

a. It’s better to test the functionality of product and effective working range before installation.

b. The range of remote control may reduce 25%-30% if the battery is low power.

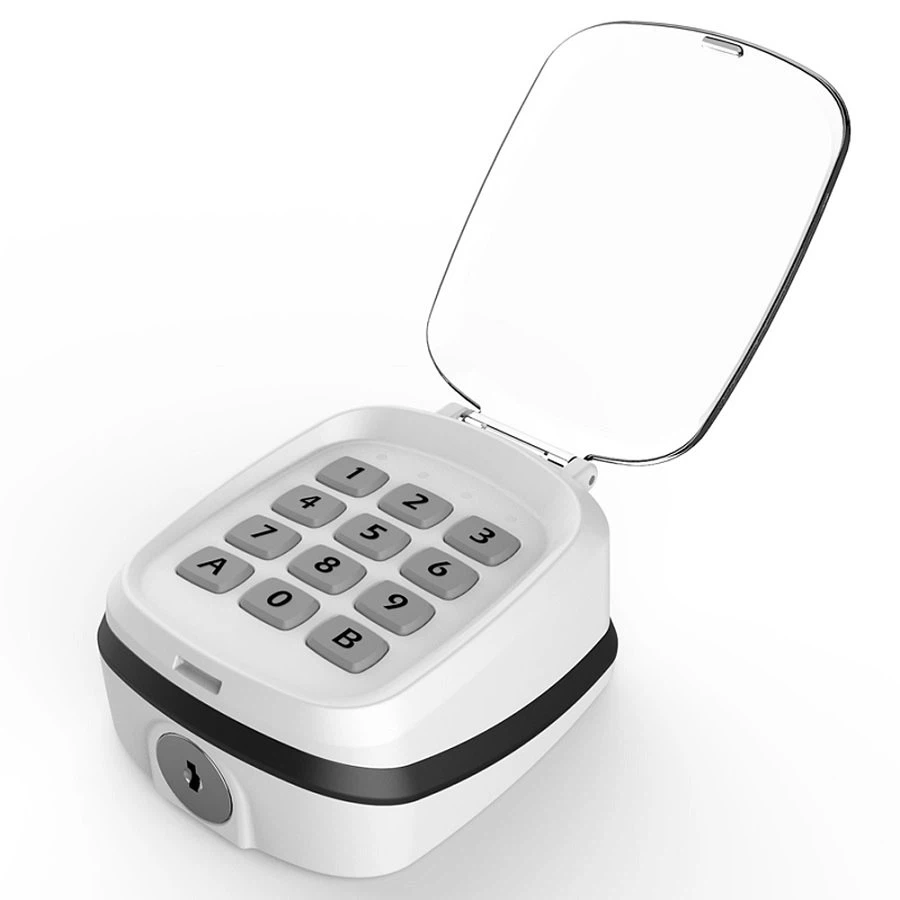

c. The product is with dust cover, keep it closed after use the keypad and open it before pressing password to operate.

Position

Besides Keeping away from other receiver, do not install the product near nor connect metal object, otherwise the signal will be shielded. It can be installed outside according to user’s needs because of the IP54 protection.
