Electronic Limit Intelligent Control Panel
The control board is only compatible with our gate openers and only match our remote control.
Automatic Close Function: Auto-Close time can be set to 10, 20, 30,40or50 seconds with no automatic close function.
Intelligent Capabilities: Soft start and slow stop function, auto reversal function when meeting obstacle.
| Model | SL500DC | SL800DC |
| power supply | 220v/50Hz;110v/60Hz | 220v/50Hz;110v/60Hz |
| Gate moving speed | 16-18m/min | 16-18m/min |
| Motor power | 150W | 180W |
| Maximum weight of gate | 500KG | 800KG |
| Remote control distace | ≥30m | ≥30m |
| Remot control mode | Single/Three button mode | Single/Three button mode |
| Limit switch | Electronic limit switch | Electronic limit switch |
| Frequency | 433.92 MHz | 433.92 MHz |
| Working temperature | -20°C ~ +70°C | -20°C ~ +70°C |
Slow Stop Speed Setting (L2)
The setting for slow stop speed can effectively reduce the inertial force when the gate is opened or closed to its limit position, which will extend the lifetime of both gate and gate opener.

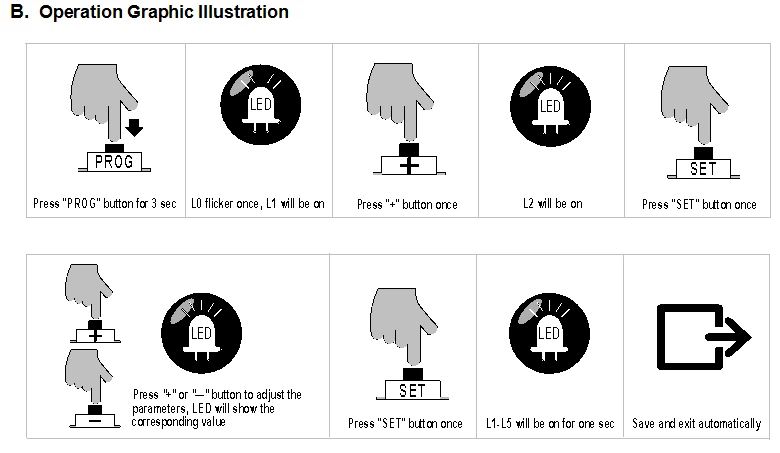

A. Operation Instruction:
1. Press and hold “PROG” button for 3 sec. to enter into basic menu. à Indicator light L0 will flicker once, then L1 will be always on.
2. Press “+” button to select slow stop speed setting option. à Indicator light L2 will be always on.
3. Press “SET” button once to enter into setting mode. à Indicator lights L1-L5 will show the current slow stop speed. (The default is L4)
4. Press “+” or “-” button to adjust the slow stop speed. à Indicator lights L1-L5 will show the different speed status. The more the indicator lights will be on, the faster the slow stop speed will be.
5. Press “SET” button to save and automatically exit. à Indicator lights L1-L5 will be on for one sec.
Our Service
Backed by a 12-month GATEXPERT Warranty. We also provide you with comprehensive system solutions. For any problems during product installation and use, just contact us via service email. We are pretty sure that you will be impressed by the high quality of our gate openers and accessories.
