Reliable DC24V Brushless Sliding Gate Opener With Remote Control SL500DCW

Products Description SL500DCW Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 500kg in weight, up to a length of 12m. Gate motion is achieved by the rotating output gear of the gate opener driving the gear rack (sold separately) fitted to the...

Send Inquiry

Add To Inquiry

Products Description

41cdc23f38527b8de6cccc77323e256

SL500DCW Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 500kg in weight, up to a length of 12m.

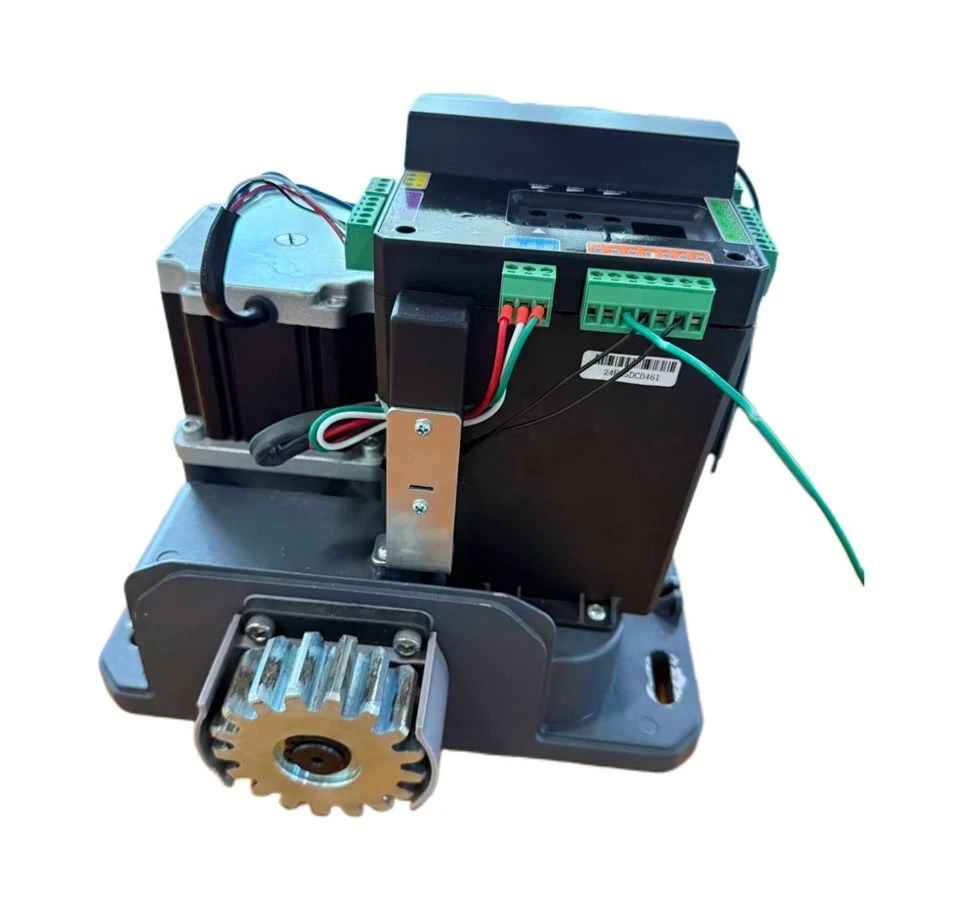

Gate motion is achieved by the rotating output gear of the gate opener driving the gear rack (sold separately) fitted to the moving gate.

The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation.

The opener must be fitted within private property, never externally to a property's boundary.

Parameters

Model	SL500DCW
Power Supply	110VAC/60Hz; 220VAC/50Hz
Motor Power	140W
Gate Moving Speed	21-22m/min
Maximum Loading Weight	500kgs
Remote Control Distance	≥30m
Limit Switch	Mechanical/Electonic
Remote Control Mode	Single/Three
Working Noise	≤56dB
Recording of up Remote Controls	100
Remote Frequency	433.92MHz
Working Temperature	-20ºC-+70ºC
Battery Specification	24V/2.5Ah lithium battery
Functions 1. Automatic close with waiting time adjustable. 2. Automatic reverse after obstacles. 3. Power outage available because of the inside battery. 4. Running speed setting and slow stop speed setting. Features 1.DC brushless motor can work continuously, built- in a transformer and a battery, can be connected to 24V solar system or 110V/220V power supply. 2. External security device and access control sysytem can be connect, 3. Magnetic/ Mechanical limit switch, easy to set open/close limit position. 4. Customized products available. 5. Battery(optional). 6 Tuya Wi-Fi module(optional). After-sales service 1.One year warranty, provide you the replacement parts for free. 2. Multiple channels to contact us, we have our own website. 3. Professional technical capabilities to meet your customization requirements. 4. Timely response within 24 hours.
