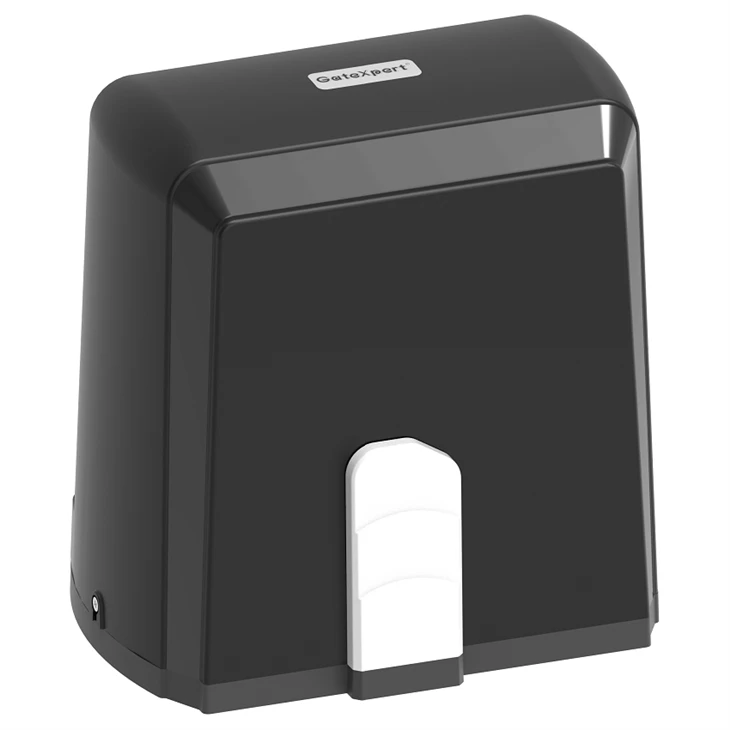

1000KG Fast Sliding Gate Opener Kit Mechanical Limit Switch GA1000DC

GA1000DC gear sliding gate opener is designed for 1000kg and 8m sliding gates, it is rack driven mode, just install your racks on the gate, when the gear on the gate opener is turning, the gate will move. After the power is off, you can open the gate release wrench with the key, and just push the gate will make the gate open or close. This is a fast gate motor with a maximum running speed of 24m/min, with a 24 VDC motor that can be used with AC or DC power (connected to a battery or solar panel).

Send Inquiry

Add To Inquiry

Product Description

GA1000DC

The GA1000DC Sliding Gate Motor is a high-performance DC-powered automatic gate operator engineered for residential, commercial, and industrial applications. Powered by a 250W DC motor with built-in intelligent control board, this opener delivers fast 24m/min gate speed while supporting gates up to 1000kg in weight and 8 meters in length . Featuring soft start/stop technology, obstacle detection with auto-reverse, and a built-in lithium battery backup, the GA1000DC provides the perfect combination of speed, safety, and reliability for modern automated access control.

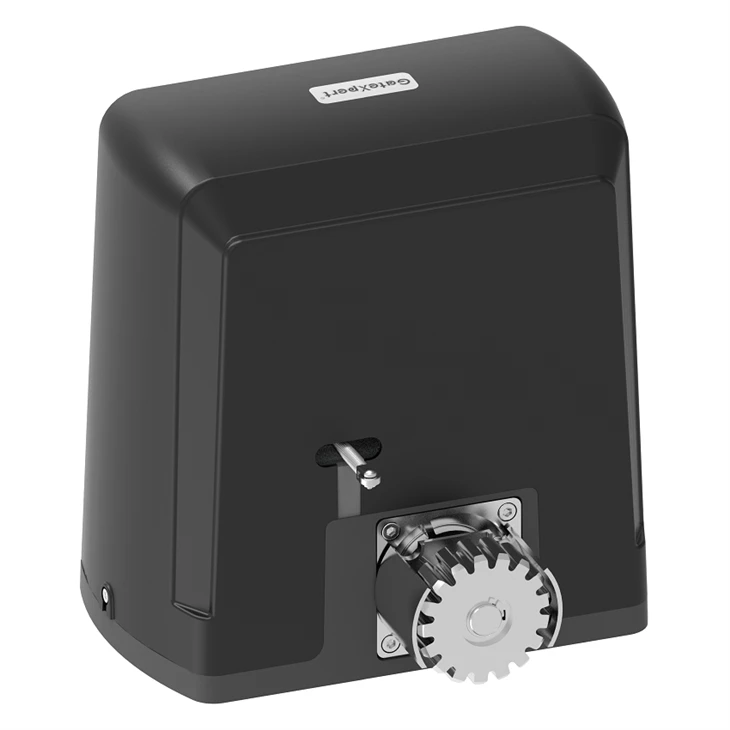

Gate motion is achieved by the rotating output gear of the gate opener driving the gear rack(sold separately) fitted to the moving gate.

The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation.

Motor power: 250W

Package weight: 13.8KG

Product Parameters

Unit Model	GA1000DC (with 1 piece of 24V/2.5Ah Lithium battery)
Power Supply	110VAC/60Hz;220VAC/50Hz
Running Speed	24m/min
Limit Switch	Mechanical/Magnetic
Noise	≤56dB
Working Duty	S2,20min
Remote Distance	≥30m
Remote Mode	Single/Three button
Remote Up Pairing	25
Remote Frequency	433.92MHz
Working Temperature	-20℃-+70℃

Functions:

1. Soft start and slow stop.

2. Automatic reverse after encountering obstacles.

3. Motor output force, stall force, slow stop distance are adjustable.

4. Partial opening for pedestrian passes.

5. Automatic close with waiting time adjustable.

6. WIFI function

Key Features:
High-Speed DC Performance

1000kg Maximum Load Capacity – Designed to handle gates weighing up to 1000kg with ease, supporting gate lengths up to 8 meters.
250W DC Motor – Delivers powerful and efficient operation with built-in intelligent control board.
24m/min Gate Speed – Fast opening and closing cycles for convenient daily use.

Advanced Safety & Smart Control

Soft Start and Slow Stop – Ensures smooth acceleration and deceleration, reducing wear on the gate mechanism and extending motor life.
Automatic Reverse on Obstruction – Detects obstacles during operation and automatically reverses the gate to prevent damage and ensure user safety.
Adjustable Motor Settings – Motor output force, stall force, and slow stop distance are fully adjustable to suit different gate configurations.
Single-Button Safety Operation – Requires one press to open and another to close, ensuring secure and controlled operation.

Intelligent Operation

Adjustable Auto-Close Timer – Customize the waiting time before automatic gate closure.
Partial Opening Mode – Enable pedestrian access by partially opening the gate without full operation.
Dual Remote Control Modes – Supports both single-button and three-button remote control modes for flexible operation.
433.92MHz Remote Frequency – Reliable signal transmission with a remote control distance of ≥30 meters.
Up to 25 Remote Controls – Program and store up to 25 remote controls for convenient multi-user access.

Battery Backup & Reliable Design

Built-in Lithium Battery – 24V/2.5Ah lithium battery ensures gate operation during power outages.
Dual Limit Switch Options – Choose between spring limit switches or magnetic limit switches for precise gate positioning.
IP44 Waterproof Rating – Built to withstand outdoor conditions, ensuring durable performance in various weather environments
Wide Operating Temperature Range – Reliable operation from -20°C to +70°C, suitable for diverse climate conditions.
Low Noise Operation – ≤56dB working noise ensures quiet performance, ideal for residential areas.
S2 Duty Cycle (20 minutes) – Designed for intermittent operation with a 20-minute working duty cycle.
Manual Release Key – Enables manual gate operation during power outages or emergencies.

How can I place an order?

You can connect any of our salesmen for machine and order details. Please tell us your requirements as clearly as you can, so that we can send you a quotation as soon as possible.

Customer Service

One-year warranty
Quick reply to help you solve the problems.
Professional technical team
