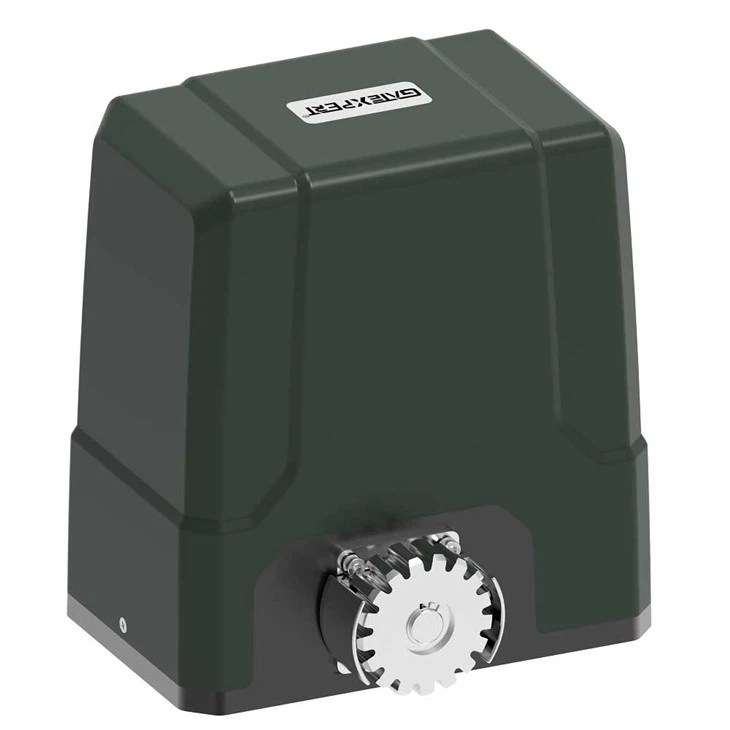

Sliding Gate Operator 800kg DC Motor
SL800DC Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 800kg in weight, up to a length of 12m. (Standard kit contains a 6m chain, if the gate length is over 5.5m, please consider to extend the length of the chain.) · Gate motion is achieved by the rotating output gear of the gate opener driving the gear rack (sold separately) fitted to the moving gate. The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation. The opener must be fitted within private property, never externally to a property's boundary.
Product Parameters
|
Model |
SL800DC |
|
Power Supply |
110VAC/60Hz; 220VAC/50Hz |
|
Motor Power |
170W |
|
Gate Moving Speed |
16-18m/min |
|
Maximum Loading Weight |
800KG |
|
Remote Control Distance |
≥30m |
|
Remote Control Mode |
Single/Three button mode |
|
Limit Switch |
Magnetic limit switch |
|
Working Noise |
≤60dB |
|
Working Duty |
S2, 20min |
|
Recording of up Remote Controls |
32 |
|
Remote Frequency |
433.92 MHz |
|
Working Temperature |
-20°C - +70°C |
| Battery Specification | 12V/9Ah×1pc |
Product Dimension
Product Function
1. Running Speed Setting
2. Slow Stop Speed Setting
3. Reverse When Meeting Obstacles Setting
4. Slow Stop Distance Setting
5. Auto-close Function Setting
Our Advantages
1. Own factory, professional equipment manufacturing products.
2. Years of experience in product production and sales.
3. Enough production capacity to meet your shipping needs.
4. Competitive price advantage and excellent product quality.
Our Service
One year warranty, provide you the replacement parts for free.
Multiple channels to contact us, we have our own website.
Professional technical capabilities to meet your customization requirements.
Timely response within 24 hours.
