1000kg 24V Brushless Heavy-Duty Sliding Gate Opener GT1000DCW
$123.00 | 100 0(Min.Order)

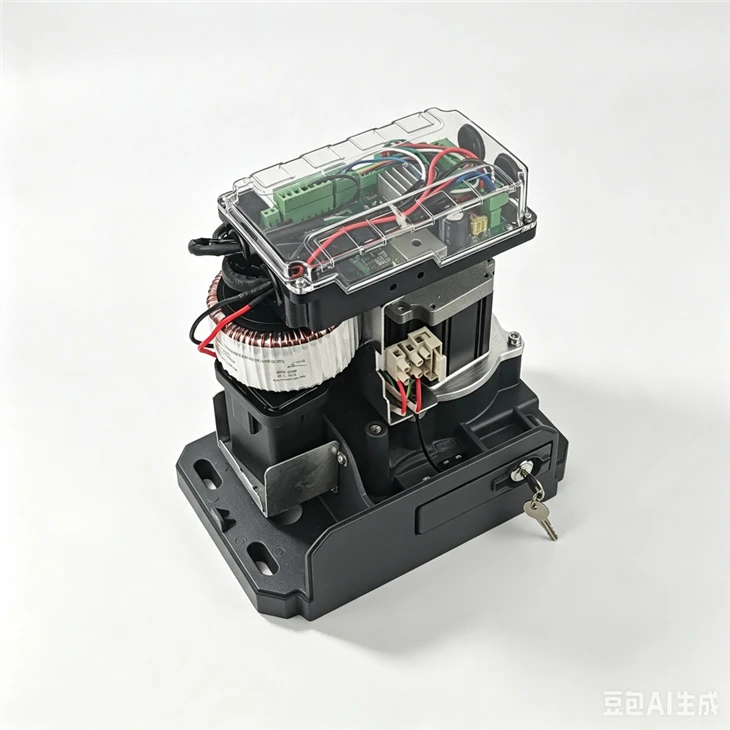

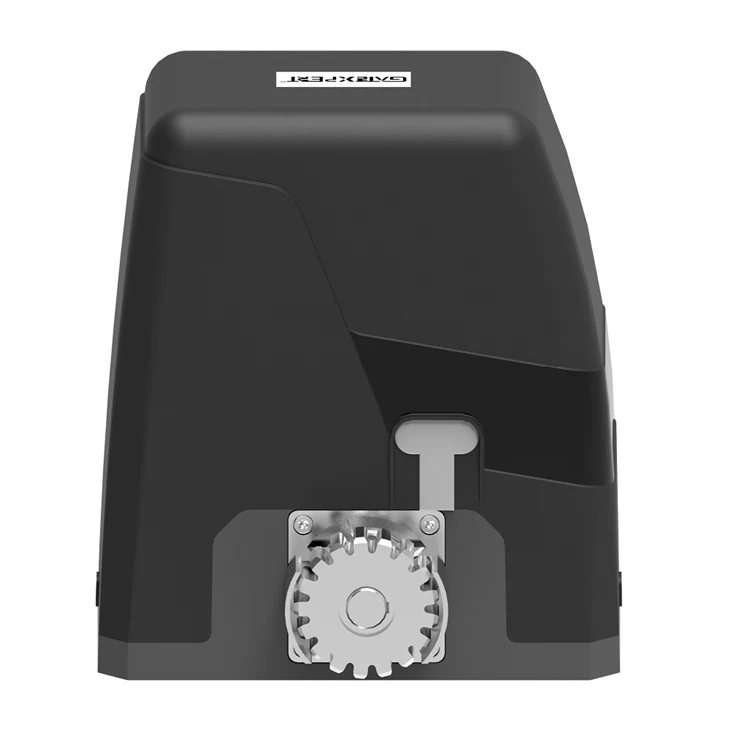

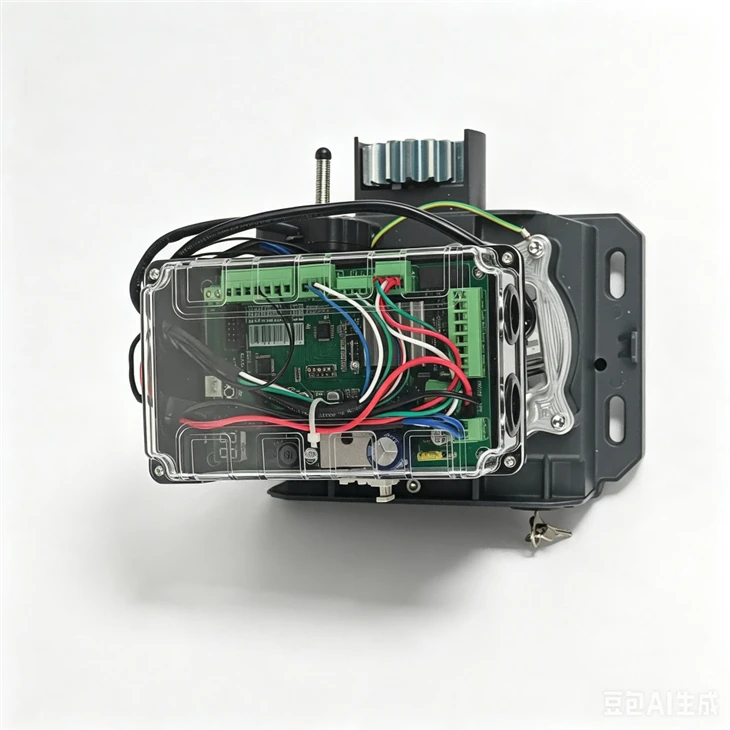

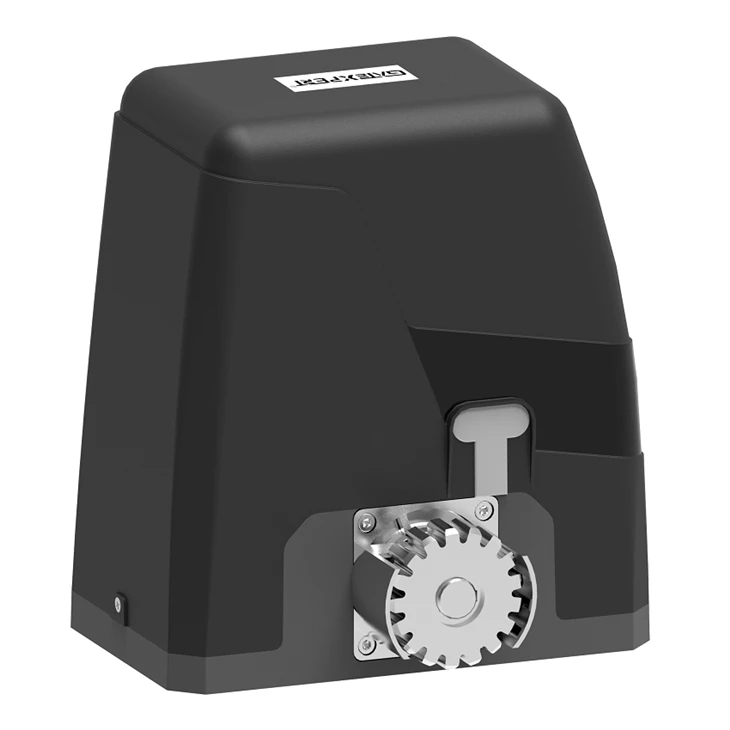

GT1000DCW is a professional-grade sliding gate opener engineered for heavy-duty residential and commercial applications. Powered by a maintenance free 24V DC brushless motor, this unit delivers exceptional torque to handle gates weighing up to 1000kg with travel lengths up to 12 meters – making it perfect for large villas, estate entrances, and industrial facilities.
GT1000DCW Sliding Gate Operator Kit
GT1000DCW is a professional-grade sliding gate opener engineered for heavy-duty residential and commercial applications. Powered by a maintenance free 24V DC brushless motor, this unit delivers exceptional torque to handle gates weighing up to 1000kg with travel lengths up to 12 meters – making it perfect for large villas, estate entrances, and industrial facilities.
Built for reliability, the GT1000DCW operates within a wide temperature range of -20°C to +70°C and includes an integrated 24V/2.5Ah lithium backup battery for uninterrupted operation during power failures. The kit comes complete with two remote controls and necessary mounting hardware.
Key Features
1000kg Heavy-Duty Capacity – Powers sliding gates up to 800kg in weight and 12 meters in length, suitable for residential, commercial, and industrial applications.

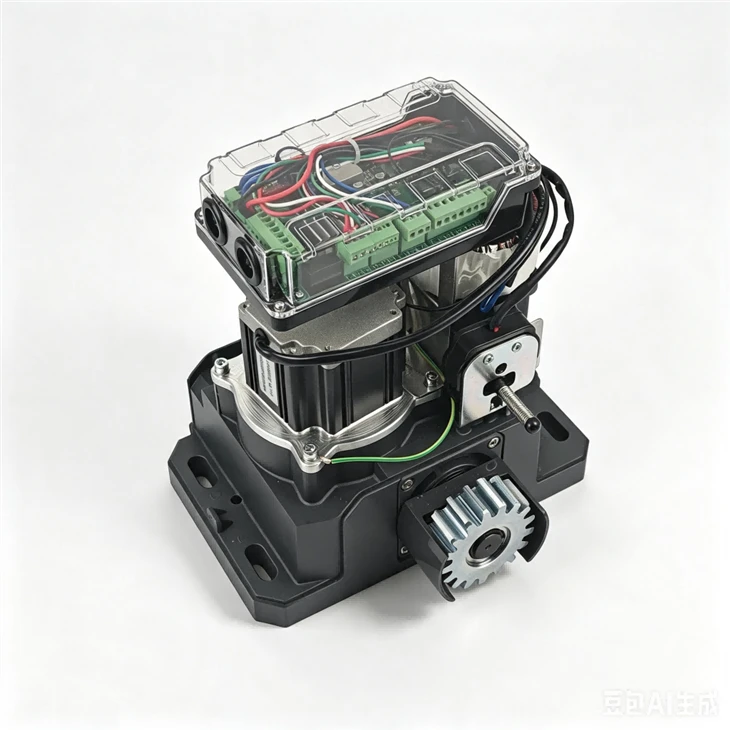

24V DC Low-Voltage Motor – Safe, energy-efficient operation with solar power compatibility for off-grid or remote installations.
Worm Gear Drive System – Self-locking mechanism ensures gate stays securely in position when powered off, eliminating the need for external locks.
Built-In Obstacle Detection – Auto-reverses on contact during closing and stops during opening, providing essential safety for vehicles and pedestrians.
Soft Start & Slow Stop – Smooth acceleration and deceleration reduce mechanical wear on gate and operator components, extending service life.
Rolling Code Remote Technology – 433.92MHz rolling code system with capacity for up to 25 remotes, ensuring secure, interference-resistant access control.
Adjustable Auto-Close Timer – Programmable delay for automatic gate closure after each opening cycle.
Dual Limit Switch Options – Supports both spring limit switches and magnetic limit switches for precise positioning.
Manual Emergency Release – Allows manual gate operation during power outages or emergencies.
Applications
The GT1000DCW is suitable for a wide range of access points, including:
Residential driveways and villas
Gated communities
Office and factory entrances
Parking lots and campuses
Remote locations with solar power availability
Commercial and industrial facilities with heavy sliding gates
Technical Specifications
(Custom configurations available upon request.)
|
Model |
GT1000DCW |
|
Power Supply |
220V/50Hz; 110V/60Hz |
|
Motor Power |
180W |
|
Travel Speed |
22m/min |
|
Output Torque |
160N·m |
|
Max. Loading Weight |
1000kg |
|
Noise |
≤56dB |
|
Limit switch |
Mechanical / Magnetic |
|
Remote Frequency |
433.92 MHz |
|
Working Temperature |
-20°C ~ +70°C |
|
Lithium Battery |
24V/2.5Ah |
Drawings & Dimensions
After Sales Service
Standard Warranty: 12 months.
Customer Support: Online technical assistance and spare parts supply.
