Operated Industrial Door Opener For 30㎡ Gate
400W motor power and 60N.m torque , the GK60SE operated industrial door opener is for 30 square meters gate, and should be used under the voltage of AC380V power supply.
Operated Industrial Door Opener for 40㎡ Gate Instruction
Model GK60SE (Three Phase)
400W motor power and 60N.m torque , the GK60SE operated industrial door opener is for 30 square meters gate, and should be used under the voltage of AC380V power supply.

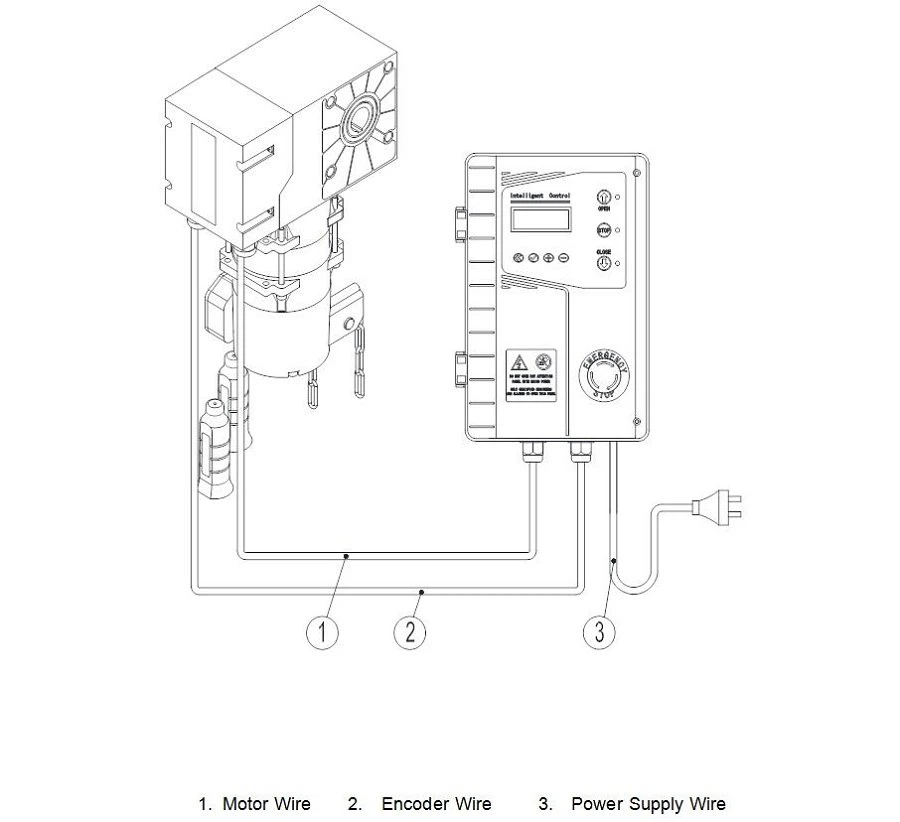

The picture shows the connection of the motor wire, encoder wire and power supply wire. Electric limit switch control box displays the status of the your operated industrial door opener avoiding climbing and debugging.
Technical Parameters (Main Engine)
Unit Model | GK60SE |
Power Supply | AC380V |
Rated Power | 400W |
Torque | 60N.m |
Max.gate area | 30m³ |
No-load Rotation Speed | 24r/min |
Maximum Limit Travel | Output shaft rotates 20 rounds |
Reduction Ratio | 1:58 |
Noise | ≤55dB |
Output Shaft Diameter | Φ25.4mm |
Encoder type | Electronic Limit |
Lubricating System | Oil-immersed |
Hand Release Device | Hand-pilled Chain |
Environment Temperature | -20°C～+50°C |
Main engine Dimension | 220x110x350mm |
Main engine Weight | 13kg |
Door Operator Packing List GK30E、GK40E、GK100E、 GK60SE、GK100SE | |||
No. | Name | Qty. | Note |
1 | Door operator | 1 | |
2 | Mounting bracket | 1 | |
3 | Fixing sleeve | 2 | Contain M6×10 fastening screw |
4 | Special flat key | 1 | 6×70 |
5 | Hexagon bolts | 4 | M10x20 |
7 | User manual | 1 | |
8 | Motor four-core wire | 1 | 5 meter |
9 | Limit switch four-core wire | 1 | 5 meter |
Control Unit Packing List GKB220E、GKB380E | |||
No. | Name | Qty. | Note |
1 | Control unit | 1 | |
2 | Remote control | 2 | |
