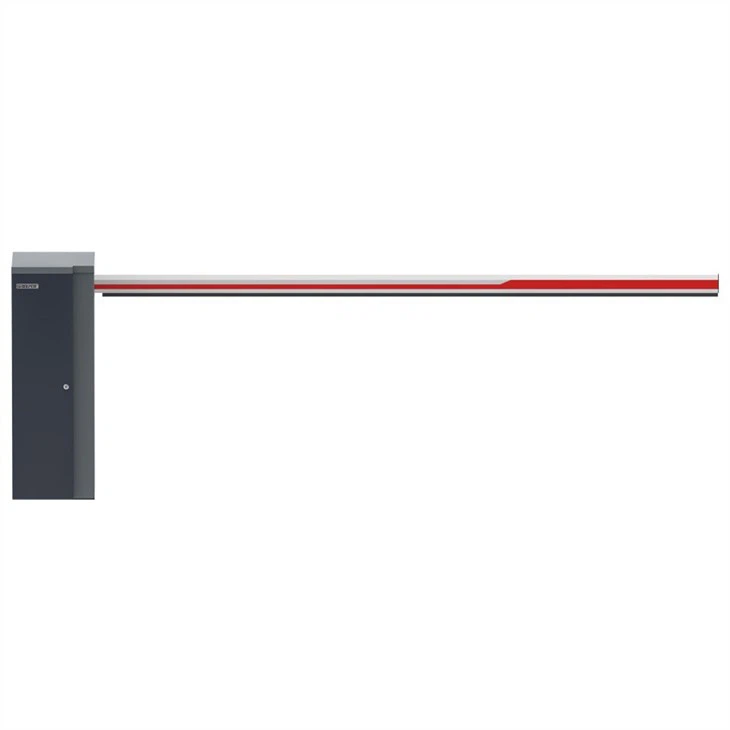

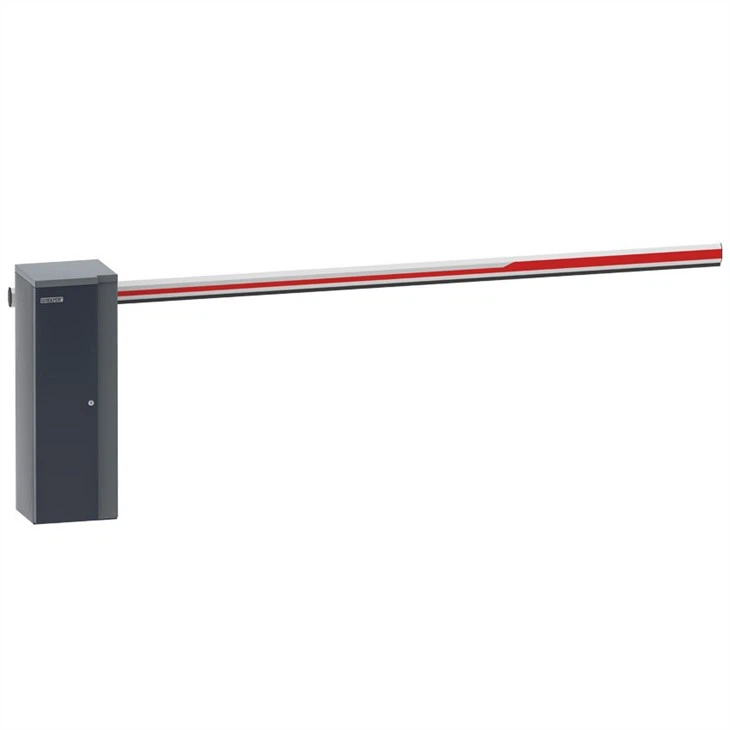

Barrier Automation Control System
Barrier gate installation must be carried out by qualified technician; Installation must comply with relevant regulations. Before installation, please read this instruction manual carefully.
Barrier Automation Control System (Customized) Instruction
Leftward fixed and rightward fixed
Technical parameters list
Model | BC3015 | BC4020 | BC5035 | BC6050 |
Boom | Round boom φ75, ≤3m; Octagonal boom 80×46, ≤3m | Round boom φ75, ≤4m; Octagonal boom 80×46, ≤4m | Octagonal boom 100×45, ≤5m | Octagonal boom 100×45, ≤6m |
Open/Close Time | 1.5 sec | 2.0 sec | 3.5 sec | 5.0 sec |
Transmission Ratio | 1:60 | 1:120 | ||
Max. Power | 140w | |||
Power Supply | AC110-240V±15% | |||
Machine Case | 1.5mm Steel Plate | |||
Machine Case Size（W×D×H） | 332 × 325 × 962mm | |||
Net Weight | 42kg | |||
Operating Temperature Range | -40℃ ~+60 ℃ | |||
Driving Method | Brushless DC motor + Helical gear reducer | |||
Protection System(IP) | IP54 | |||
Insulation Class | F | |||
Relative Humidity | ≤85% | |||
Motor Unload Speed | 1500r/min | |||
Service Life | 5 million times | |||
Remote Control Distance | ≤30m | |||
Running Noise | ＜50dB | |||
Surface Treatment | Outdoor metal powder electrostatic spraying | |||
Pre-Installation Check
●Barrier gate installation must be carried out by qualified technician; Installation must comply with relevant regulations. Before installation, please read this instruction manual carefully.
●Please definite the installation direction of the barrier gate to be leftward or rightward fixed.
●Please make sure that the boom will operate freely without any impediment.
●Please make sure the mounting base is strong enough and the size is suitable.
●Please make sure the installation spots for all the relative equipment are suitable to avoid any collision.
●Please check the accessories according to the packing list as the user manual shows.
About Shipping
●For the stock in US warehouse, we will always ship the products within 3 working days, the shipping time is about 5 working days. For the customized products,the production is about 1 month(It’s up to the quantity), the shipping date is about 2 months(It’s up to your destination port address).
●Any problems on shipping please feel free to contact us, and we will help you to make a shipping plan and check the shipping status.
●Please leave your address and phone number in detail when you make an order so that the package can be delivered successfully.
●Please take a package in time after it is delivered to avoid missing it.
