1000N Automation For Garage Doors

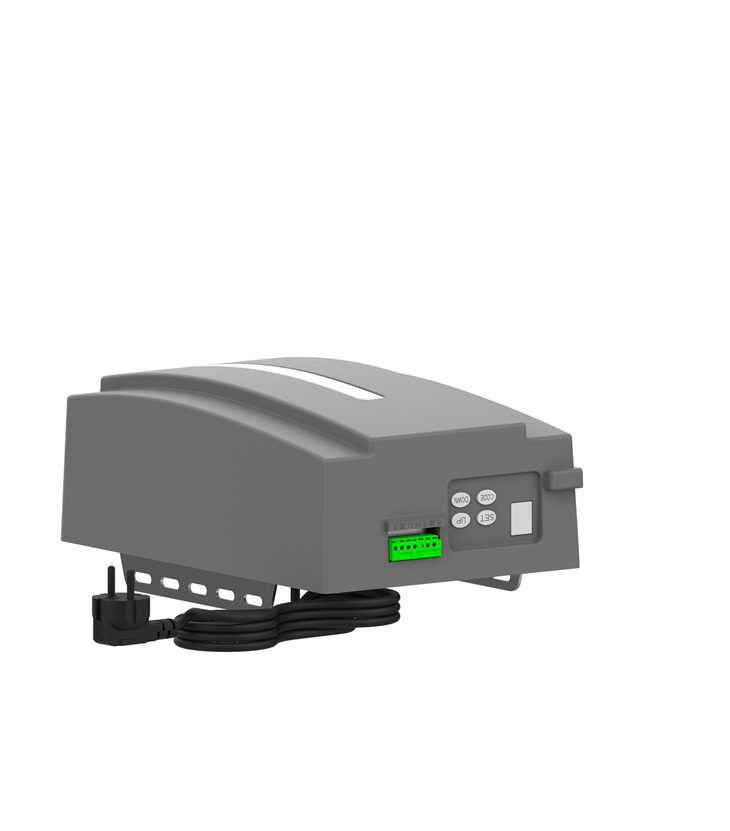

PD1000 automation for garage doors can driven the 15 square meters area garage door, and for this model of the automation for garage doors, the maximum door weight should be 100kg.
1000N Automation for Garage Doors Instruction
PD1000 automation for garage doors can driven the 15 square meters area garage door, and for this model of the automation for garage doors, the maximum door weight should be 100kg.
Package

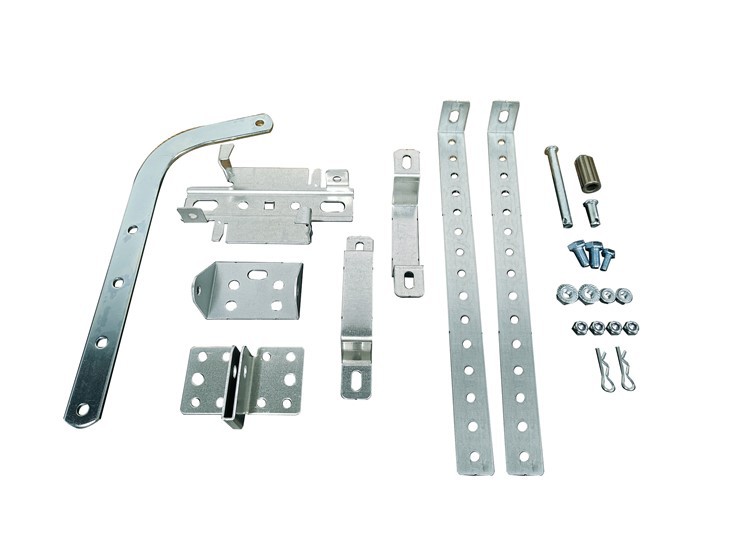

For the package，the PD1000 garage door opener and small installation parts are in one carton, and the batteries and the rails are packed separately.
Technical Parameters
Unit Model | PD1000 |
Power Supply | AC110V/60Hz;AC220V/50Hz |
Output Torque | 1000N |
Max.Door Area | 15m³ |
Max.Door Weight | 100KG |
Limit Switch | Electronic Limit Switch |
Opening/Closing Speed | 160mm/Second |
Drive Mechanism | Chain/Belt |
Remote Frequency | 433.92MHz |
Working Temperature | -40°C～+50°C |
LED | 24V/15pcs LED bulbs |
Product Function
Codes memory quantity
“A” appears on the display means the maximal code memory quantity is 50pcs. Press UP/DOWN button once, to increase or decrease quantity. The code memory quantity is set on 5pcs*N, N=1~9. (The quantity is the multiple of 5).
Maintenance alarm
“t ”appears on the display and led light flashes 10 times quickly means the garage door and motor need total maintenance.
Automatic safety reverse
Automatic stop / automatic reverse are controlled by our software of circuit boards. We are circumspect to protect your children, pet or other goods.
Soft start / Soft stop
Ramping speed up and down at the start and end of each cycle reduces stress on the door and opener for longer life, and makes for quieter operations.
Auto-Close
Auto- Close ensures peace of mind and keeps your house secure by automatically closing the door upon entering or exiting the garage.
