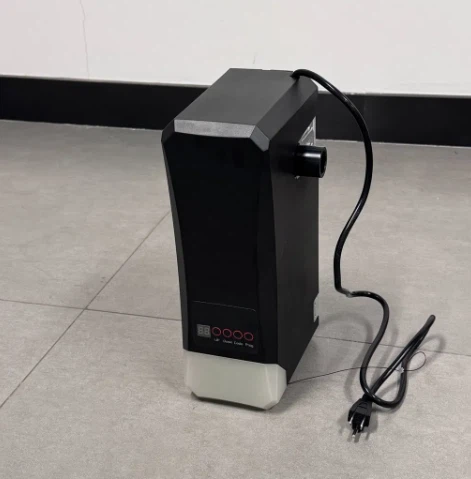

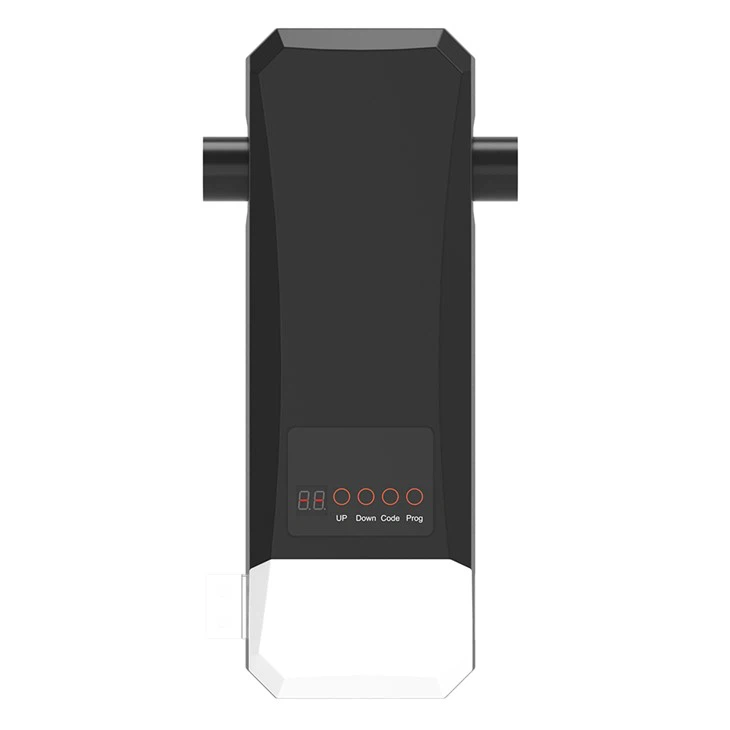

100kg Wall Mount Garage Door Opener
CK850DC door opener is suitable for lifting garage doors with a weight of less than 100 kilograms and a door area of less than 15 square meters.
CK850DC door opener is suitable for lifting garage doors with a weight of less than 100 kilograms and a door area of less than 15 square meters. The driving mode adopts worm gear transmission and sprocket transmission. This door opener must be installed on the inside of the garage door to prevent damage to the door opener.

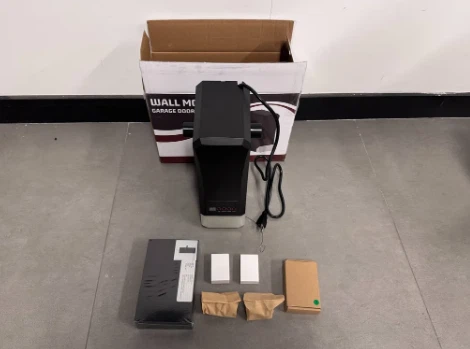

Package Includes
CK850DC motor
Two remote controls
Installation parts
Electric lock (optional)
| Model | CK850DC |
| Power supply | 220V/50Hz;110V/60Hz |
| Motor power | 150W |
| Gate moving speed | 30r/min |
| Max.door weight | 100kg |
| Max.door area | 15 square meter |
| Remote control distance | ≥30m |
| Remote control mode | Single/Four button mode |
| Noise | ≤55dB |
| Working duty | S2, 15min |
| Recording of up remote controls | 25 |
| Remote frequency | 433.92 MHz |
| Working temperature | -20°C - +70°C |
Function:
1.No need to relearn limit positions after power failure.
2.Quick pull rope release device.
3.Automatic close time setting.
Feture:
1.Encoder limit, limit precision.
2. Electromechanical integration 24V DC motor, stable operation.
3. Convenient design, direct installation without opening the cover.
4. Access to external equipment: infrared/wireless keypad/wifi control.
